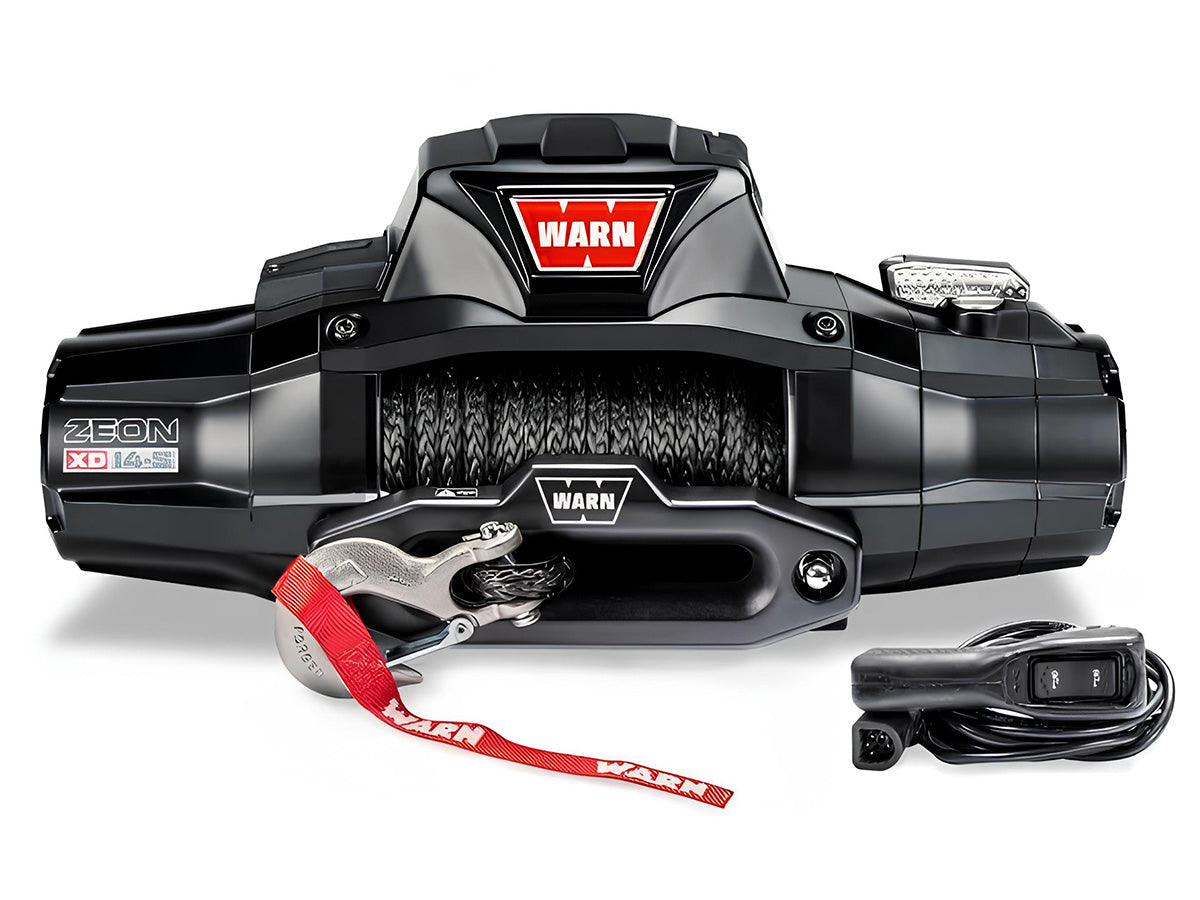

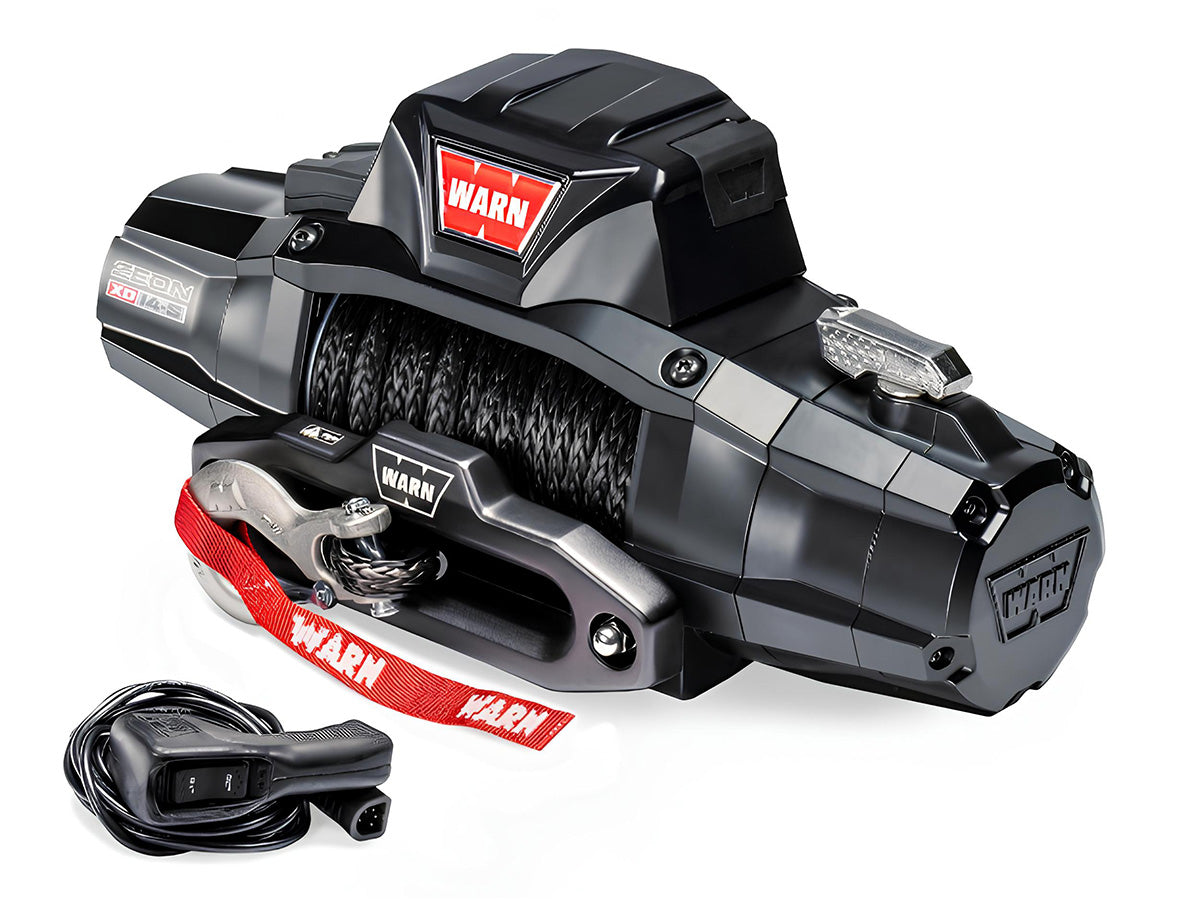

The Ultimate Power: Warn Zeon XD14-S (6.3 Tonnes)
When the situation becomes critical, the name Warn is the one you trust. Zeon XD14-S redefines the standards of off-road winching. With a massive traction capacity of 6350 kg (14,000 lbs)It is the most powerful in its category. It's designed for heavy vehicles, shipping trucks, and extreme conditions. This winch doesn't just pull hard, it pulls fast. Its new motor delivers an impressive no-load winding speed of nearly 8 meters per minuteThis is the ultra-reliable recovery tool you can count on.
Armored construction and IP68K/IP69K waterproofing
Sustainability is at the heart of the Zeon XD. Made and assembled in Clackamas, Oregon (USA)It benefits from OEM build quality. The winch is fully shielded by a metal armor. Its seal is complete thanks to double rubber O-rings. It meets the standards IP68 (immersion) and IP69K (high pressure cleaning). Corrosion doesn't stand a chance thanks to the new black fittings and the 6061-T6 forged aluminum fairlead. It has withstood over 400 hours of salt spray testing.
Advanced Control Technology and Spydura Rope

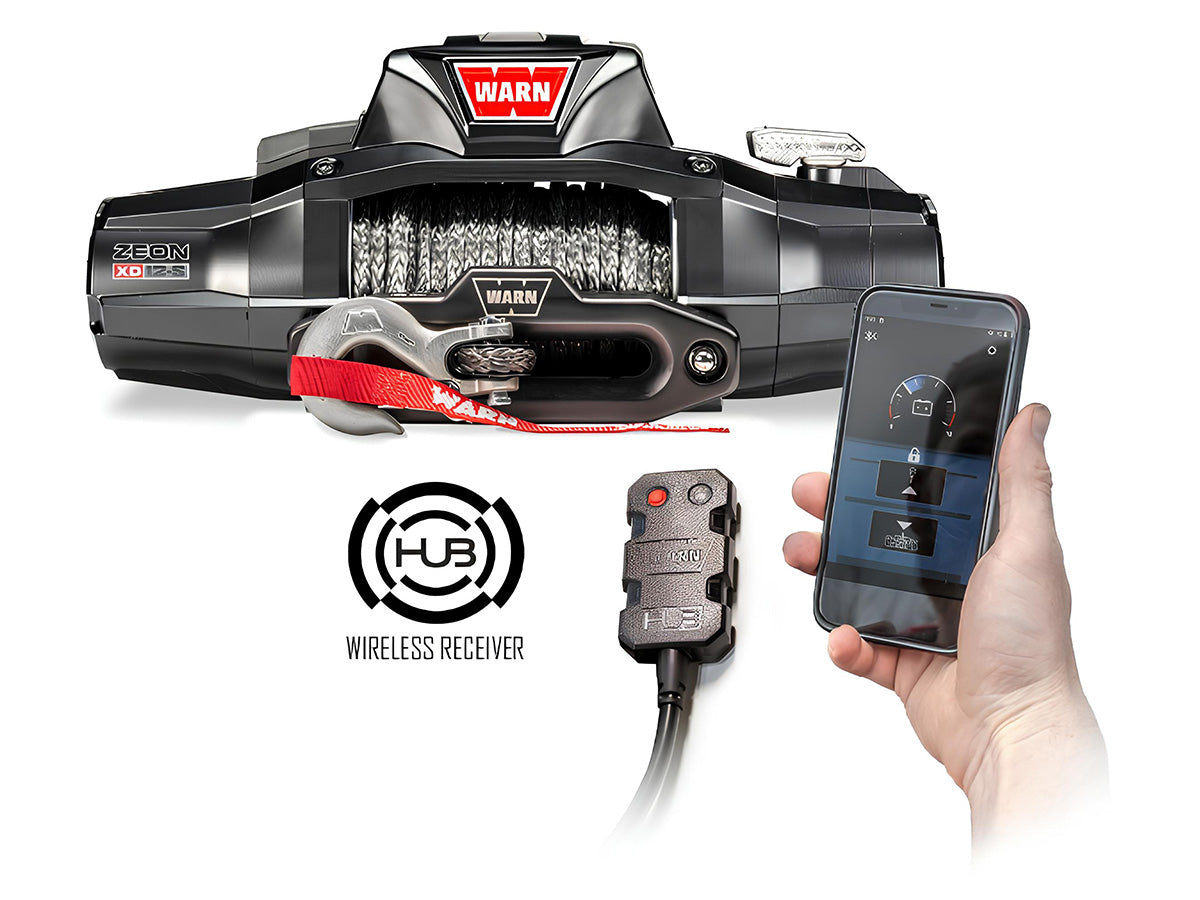

The Zeon XD14-S comes with 24 meters of Spydura Pro synthetic ropeThis rope is lightweight, easy to handle, and extremely durable. For control, you have a choice. Use the included robust 3.7-meter wired remote. Or go wireless with the... integrated HUB receiverSimply pair it with the application. Warn HUB on your smartphone to control your winch from up to 30 meters away. It's the perfect fusion of brute force and modern technology.
Essential Information (Technical List)
-
Brand : Warn (Made in the USA).
-
Template: Zeon XD14-S (12V).
-
Traction Capacity: 6350 kg (14,000 lbs).
-
Rope : Synthetic Spydura Pro (24.38 m x 9.5 mm).
-
Engine : 12V DC Series Wound (High Performance).
-
Waterproofing: IP68 (Immersion) and IP69K (High Pressure).
-
Line Speed (No-Load): 7.95 m/min.
-
Control : Wired remote control (3.7m) + Wireless HUB receiver (via App).
-
Planetary Train: 3 floors (Ratio 213:1).
-
Cable Guide: Black Forged Aluminium Fairlead (Hawse Fairlead).
-
Guarantee : Limited lifetime (Mechanical) / 7 years (Electrical).
-
Weight : Approximately 38.5 kg.
-

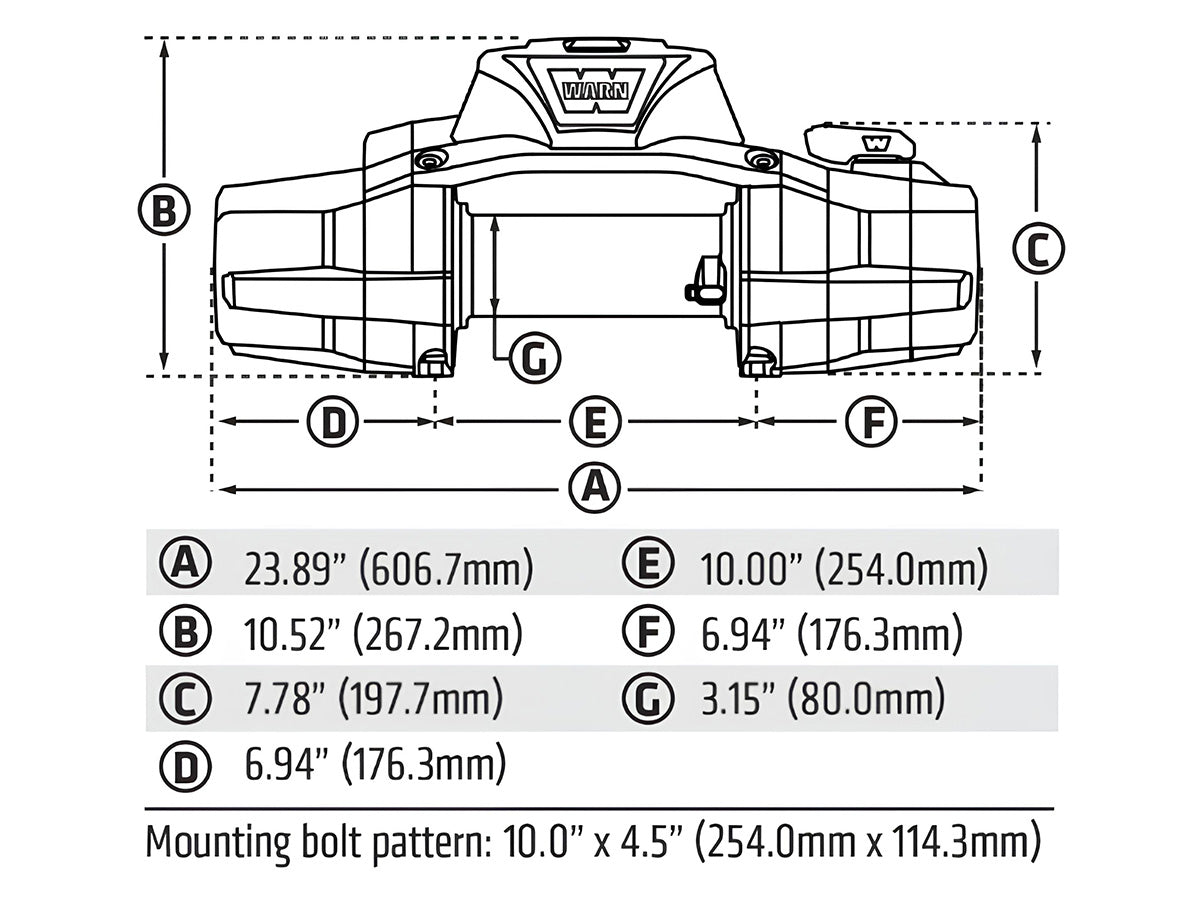

Installation note: Requires a compatible bumper or mounting plate.
Does this winch come with a wireless remote control?
THE Warn Zeon XD14-S It is equipped with hybrid technology. It comes with a robust 3.7-meter wired remote control. In addition, it includes the Wireless HUB Receiver. This allows you to control the winch via Bluetooth using the free app Warn HUB on your smartphone (iOS or Android), with a range of over 30 meters.
Which battery is recommended for this 6350 kg winch?
Given the motor's power and current consumption (up to 482 Amps at full load), Warn recommends a battery with a minimum of 650 CCA (Cold Cranking Amps). For intensive use, a dual battery configuration or a high-performance battery is strongly recommended to ensure optimal operation without depleting the vehicle's electrical system.
Is the winch truly waterproof and mudproof?
Yes, the Zeon XD is the most waterproof winch in the range Warn. He has a certification IP68which means it can be completely submerged underwater without damage. He also holds the certification IP69Kguaranteeing resistance to high-pressure and high-temperature water jets. Double O-rings ensure that water, mud, and dust remain outside of critical components.
