Redarc Manager30 Battery Management System

REDARC Manager30: The Complete Battery Management Solution

THE REDARC Manager30 is a complete battery management system designed to charge auxiliary batteries used in recreational vehicles and marine applications. This dual battery system integrates AC, DC, and solar inputs to achieve the most efficient and flexible charging for an auxiliary battery bank.

Easy to install, the Manager30 is compatible with all vehicles and alternator systems, including the latest intelligent variable voltage alternators. Whether you are using lead-acid, gel, calcium, AGM, or lithium iron phosphate batteries, the Manager30 represents a complete DC to DC charging and maintenance solution. Whether you are charging a single auxiliary battery or several, the Manager30 will ensure they are always fully charged, giving you peace of mind when the battery charge powers the comfort of your home while traveling.

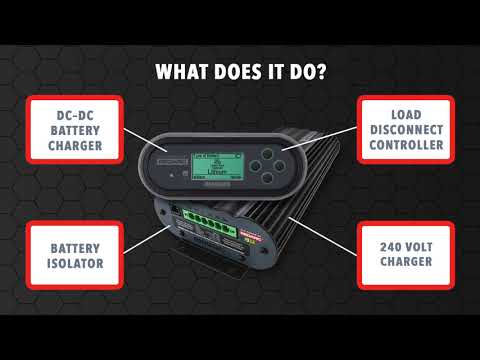

THE Manager30 works as 6 separate products:

• On-the-go auxiliary battery charger: It charges an auxiliary battery from the moving vehicle.

• 240 volt charger: It serves as a 240 volt charger.
• Solar regulator: It acts as a solar regulator.
• Battery isolator: It works as a battery isolator.
• Load disconnect controller: It acts as a load disconnect controller.

• Remote Battery Monitor: It is equipped with a remote battery monitor to allow you to monitor the charging status.

Charging lithium batteries: The Manager30 is specially designed to charge lithium batteries according to their specific charging conditions, including integrated cell management.

Priority to green energy: The Manager30 is designed to charge an auxiliary battery from multiple sources simultaneously. It prioritizes 12-volt solar power when available, then supplements charging from other sources such as AC power (if available) or the vehicle's DC power while traveling.

MPPT solar regulator: The integrated Maximum Power Point Tracking (MPPT) solar controller allows the Manager30 to extract maximum power from portable solar panels, even in low light conditions.

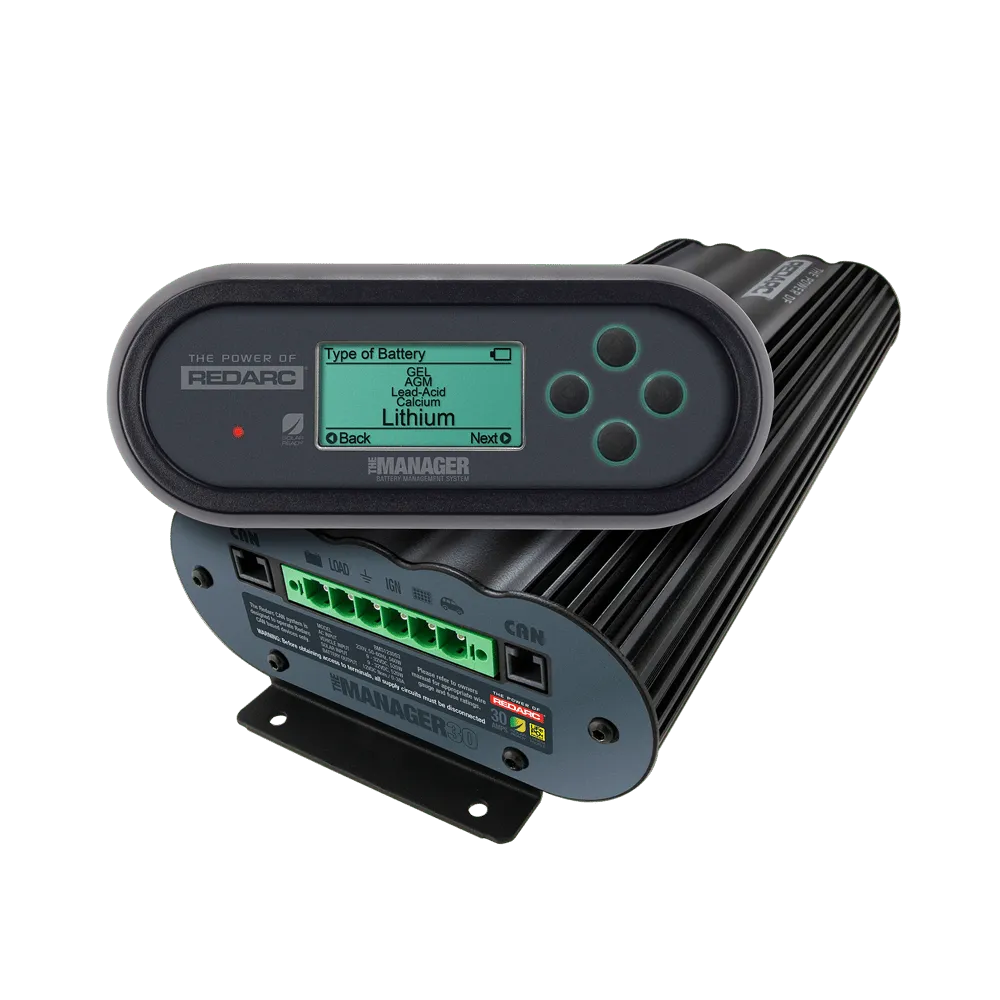

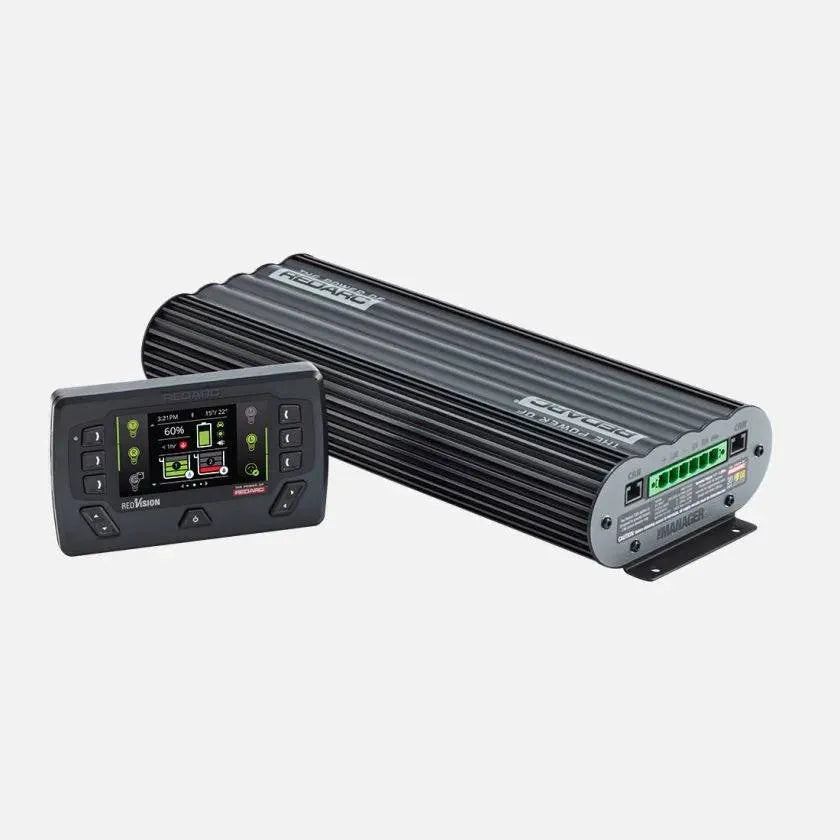

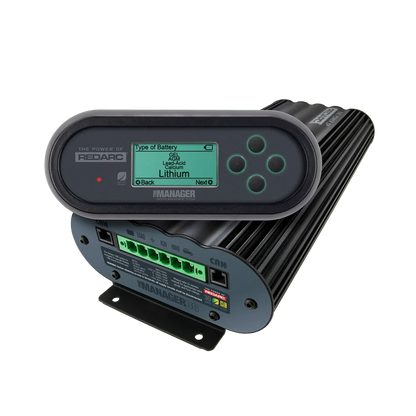

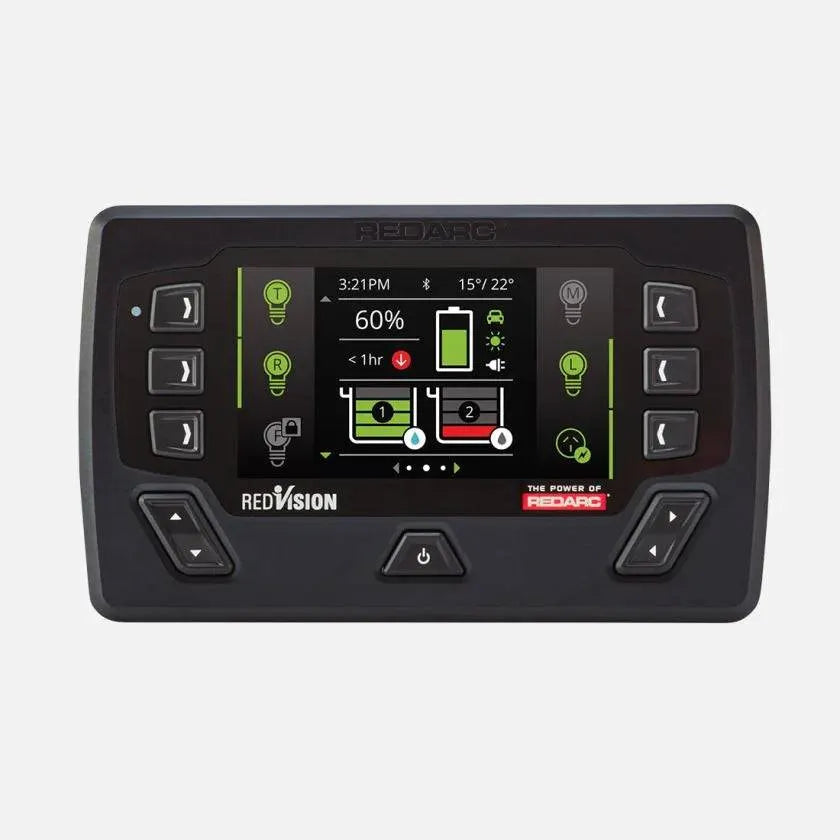

Remote Monitor: The monitor displays auxiliary battery information and charge status. You can customize how your battery is charged and monitor where it's being charged. A user-friendly graphic display keeps you informed at all times. A new optional color monitor is available for 2021.

Technical characteristics :

• Output system voltage: 12VDC
• Maximum charging voltage: 16.0V* (*Calcium setting in storage mode)
• Nominal output current: 30A
• Output power: 520W
• Input fuse: 40A
• Output fuse: 40A
• Guarantee : 2 years
• Protection: Short circuit, Overvoltage, Reverse polarity, Overload
• Input voltage (operating): 240VAC / 9 – 32VDC
• Dimensions : 445mm x 185mm x 79mm
• Weight : 5.5 kg

Choose the REDARC Manager30 for advanced and efficient battery management in your recreational vehicles and marine applications. With its versatility and advanced features, it's the ideal choice for keeping your auxiliary batteries perfectly charged, wherever you go. Contact us for more information or to order your Manager30 today!

PRODUCT BROCHURE - USER GUIDE.PDF (CLICK HERE)
