Tank 145L ARB Frontier for Nissan Patrol GQ/GU

ASSEMBLY INSTRUCTIONS - INSTALLATION GUIDE.PDF (CLICK HERE)

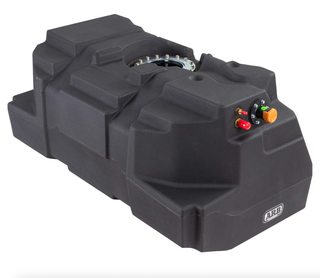

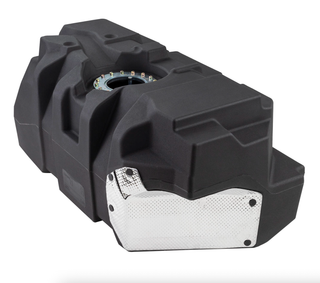

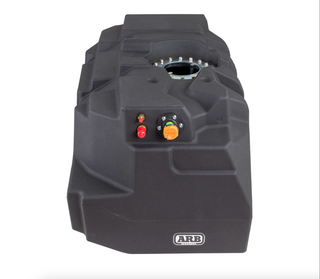

Replace your stock tank with a robust 145-liter tank from ARB, specially designed for long-distance adventurers. Made from ultra-strong rotomolded polymer, this long-range tank offers more range, fewer stops, and simple installation, all delivered with its included adapter kit.

✅ Why install an ARB long-range tank?

Whether you're riding through the desert, the Alps, or Australian trails, here's why this ARB tank is a game changer:

• Capacity increased to 145L (i.e. +55L relative to the origin)
• One-piece design made of impact and UV resistant polymer
• Ultra light: only 33 kg
• No rust, no corrosion
• Suitable for extreme terrain and severe angles
• Included: Adapter kit for mounting on Patrol GQ (SPACER KIT)

🔧 Technical details and compatibility

Specifications:

• Type: Replacement tank
• Material: High density polyethylene (7-9 mm thick)
• Gross weight: 33 kg
• Capacity: 145 Liters
• Estimated installation time: 120 minutes

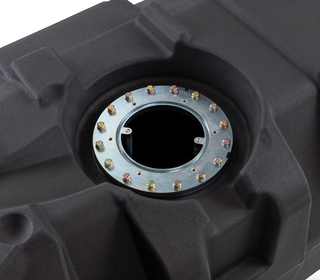

• Filler neck machined from aluminum

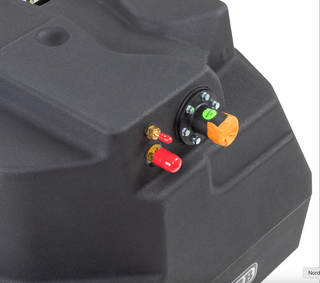

• Fuel collector with integrated 1.8 bowlL
• Galvanized steel fasteners with rubber coating

Compatibility:

• Nissan Patrol GQ & GU
• Diesel 3.0L et 4.2L uniquement
• Coil sprung chassis only (not leaf sprung compatible)

See the full list of vehicle compatibility further down in this sheet.

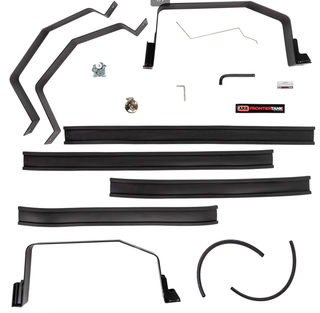

🧰 Kit contents included

• ARB Frontier 145 TankL
• Adapter kit for Patrol GQ (Spacer Kit for TAD109)
• ARB strap fastening system
• ARB fuel manifold with Coil spring integrated
• CNC machined aluminum filler neck
• 10mm zinc plated steel fuel intake plate
• Detailed installation instructions

❓FAQ - Your most frequently asked questions

Does the tank change the ground clearance?

No, the design fits the voids under the vehicle to maintain the original ground clearance.

Can you assemble it yourself?

Yes, the ARB mounting system is designed for quick installation without major modifications. However, an installer can make the task easier.

Is the reserve light still working?

Yes, but the displayed autonomy (trip meter) may no longer be reliable due to the increased volume.

Is it compatible with ARB or Kaymar rear bumpers?

Yes, 100% compatible.

Is this product guaranteed?

Yes, 3-year ARB manufacturer's warranty.
