Compressor for Air Locker Differential Lock (only) 12V - ARB

ARB Air Locker Activation System - Designed for activating your Air Locker

Technical Data Sheet - User Manual.PDF (Click here)

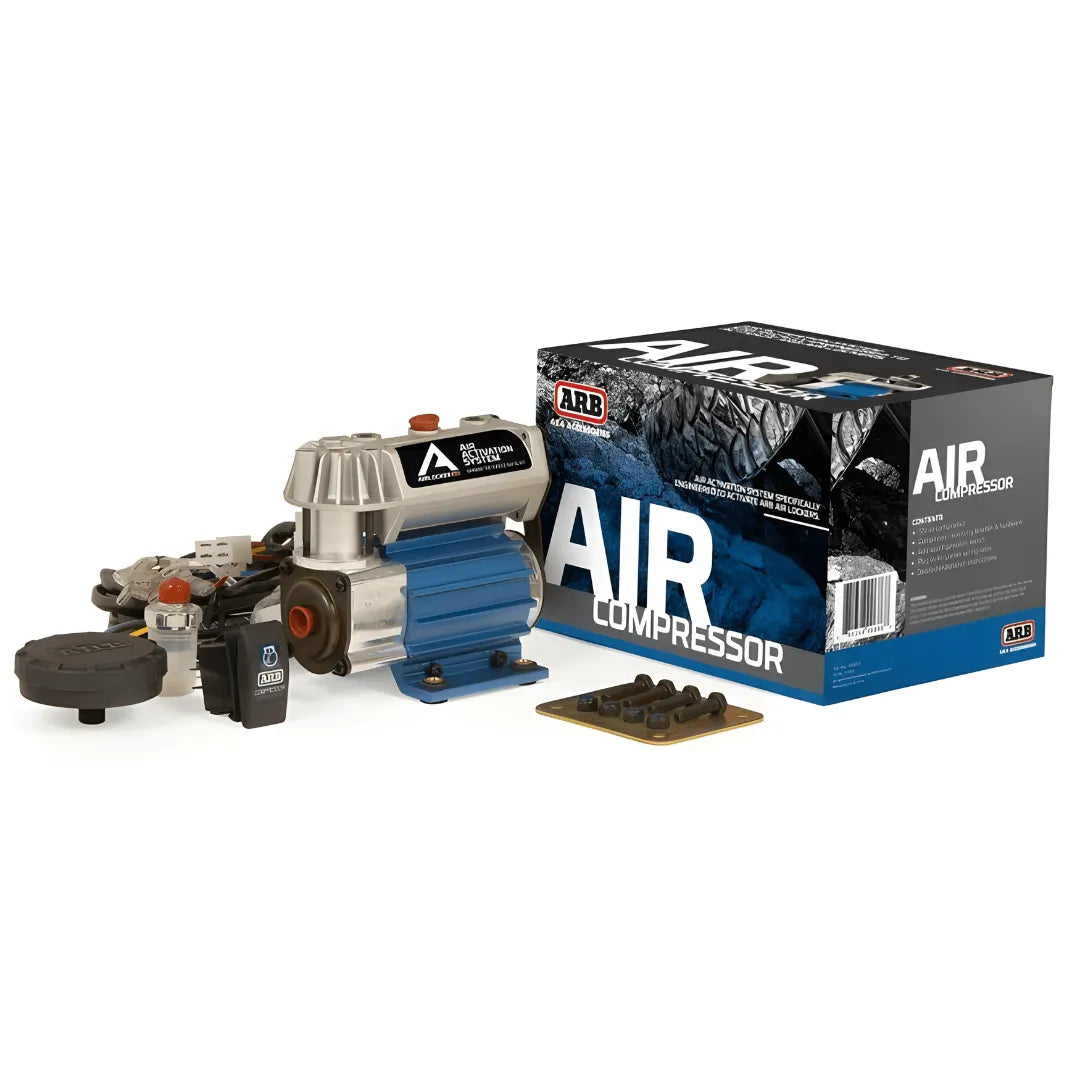

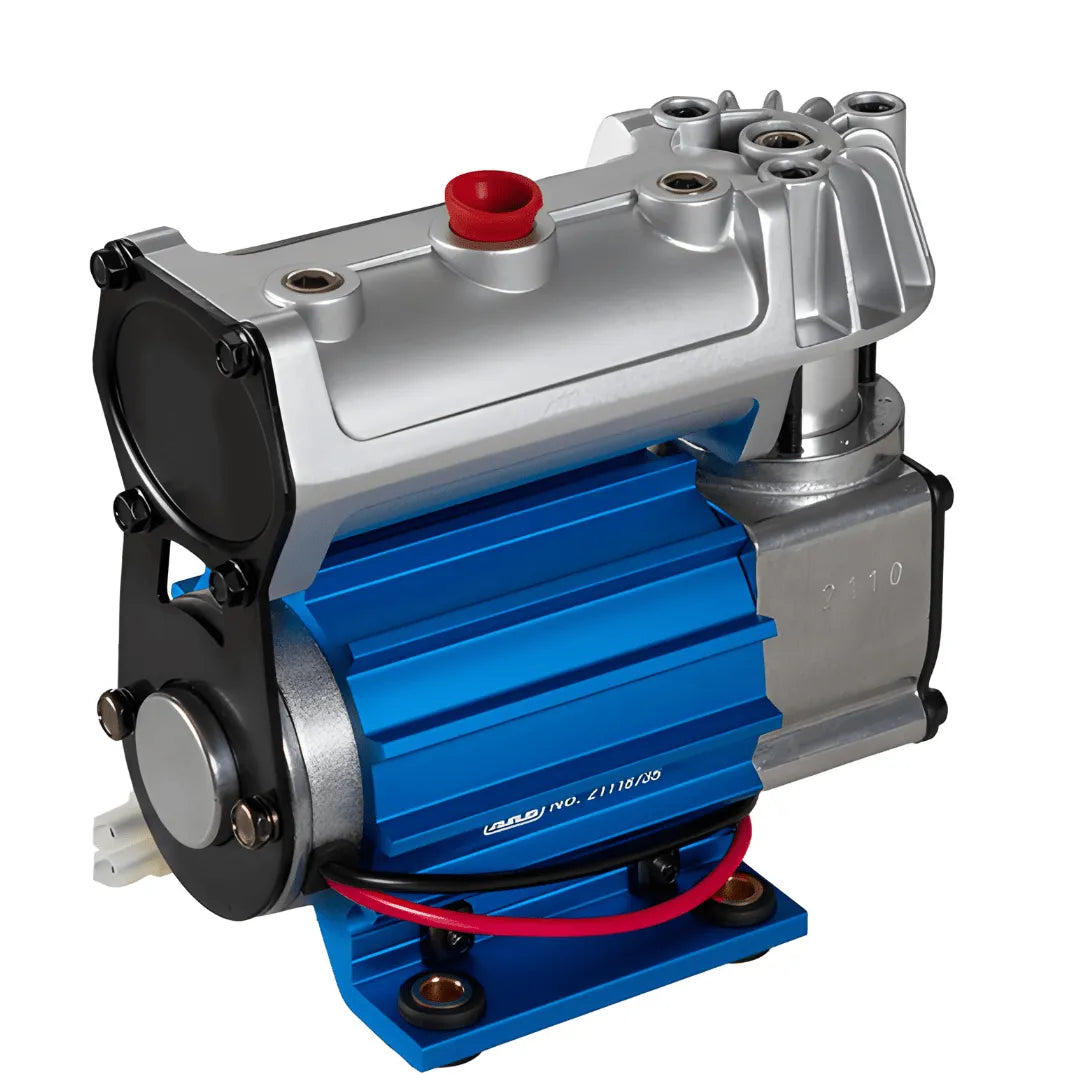

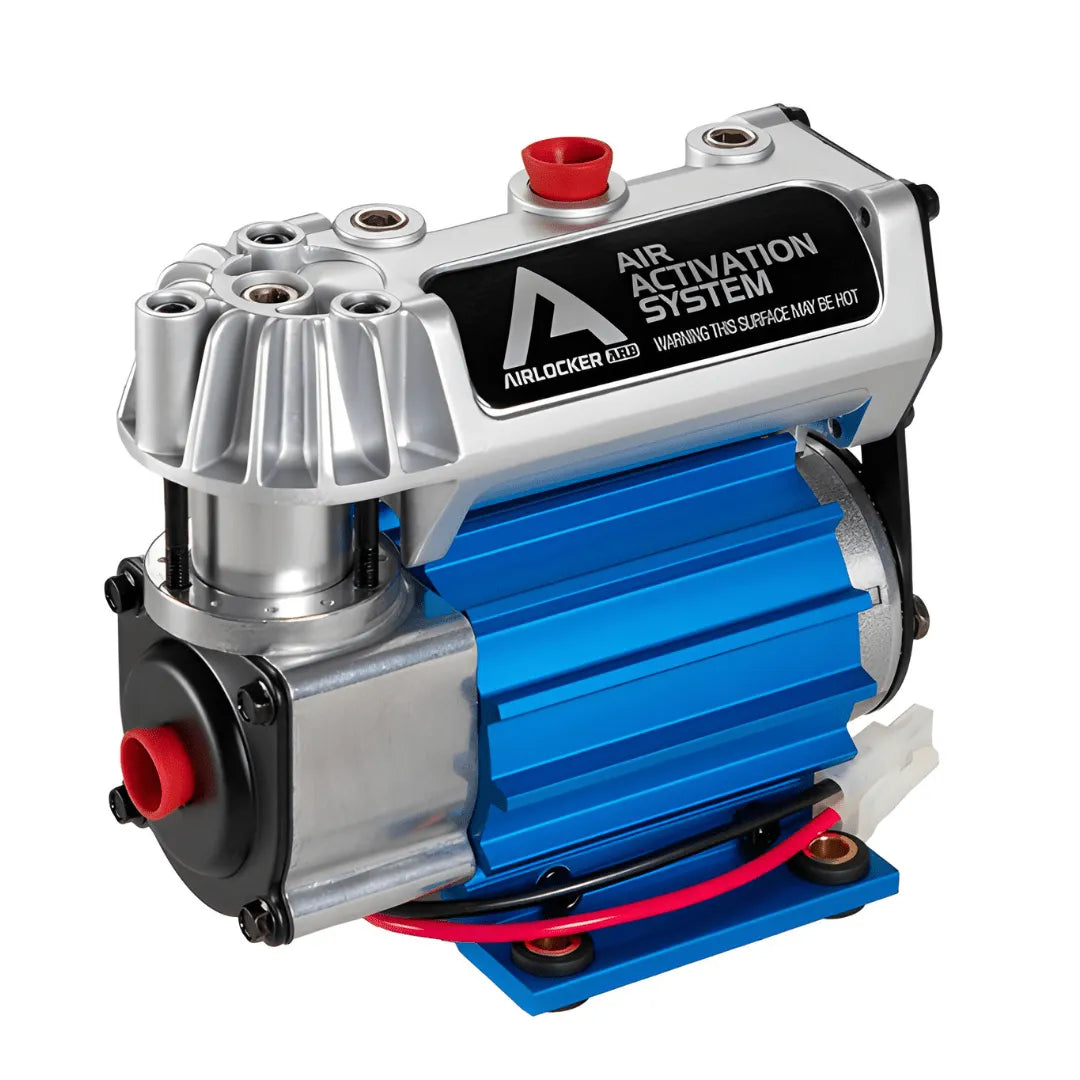

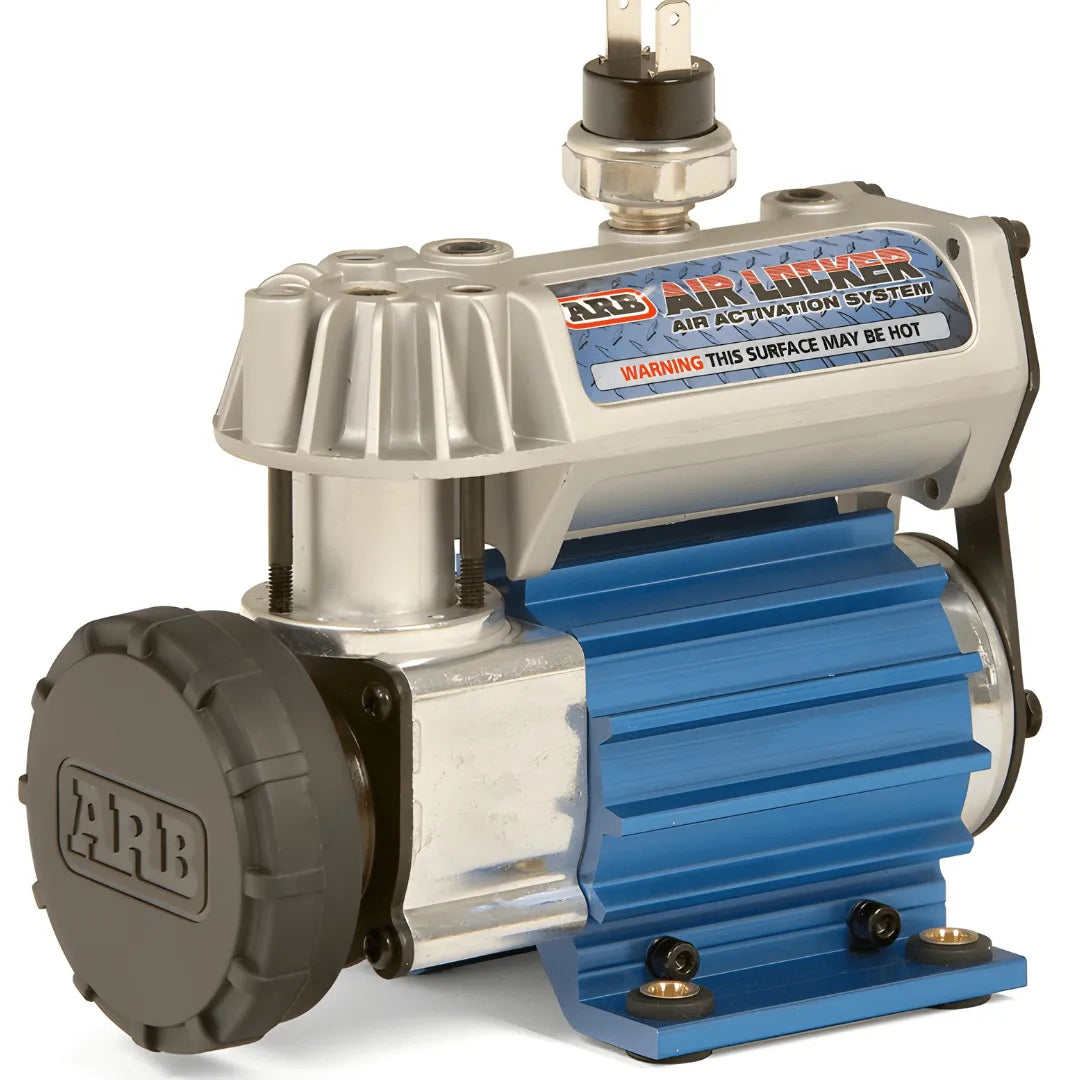

THE ARB compressor for the Air Locker differential lock is specially designed for efficient activation and is protected against moisture and dust. This compact on-board compressor is equipped with a complete wiring harness for simplified installation and plug-in connectivity to the Air Locker control solenoids.

Compact but powerful

Despite its compact size, the Air Locker activation system is made from high-quality components for quiet operation and extended service life. It is ideal for powering from the 12V accessory socket of most 12V and 24V vehicles thanks to its low current consumption.

Additional Features

• Hard anodized cylinders for reduced friction
• Teflon impregnated carbon fiber piston seals for maximum trouble-free life
• Anodized mounting bracket dissipating heat from the engine and allowing a 180 degree repositioning of the compressor
• Made entirely from high strength and lightweight engineering materials
• Repositionable air filter assembly for cleaner, cooler air supply and versatile positioning of the sealed air inlet

Technical informations

• Net weight: 1.5 kg
• Dimensions: 8.8 cm width x 12.2 cm height x 16.2 cm length
• Assembly time: 90 minutes
• Tension DC : 12V
• Operating cycle: 35%
• Volume flow rate up to: 27.7 l/min at a pressure of 200 kPa; 19.7 l/min at a pressure of 0 kPa
• Nominal current at 20°C: 5.5 A at 0 kPa; 7.5 A at 200 kPa
• Filter type: Particulate filter
• Packaging dimensions: 22 cm length x 16 cm width x 15 cm height
• Gross weight: 2.4 kg
• Kind : Single compressor
• Guarantee : 3 years

buy now

Choose the 12V ARB compressor for unparalleled performance and reliability. Ideal for demanding users, this system is your best ally for unparalleled off-road driving.
