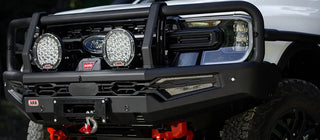

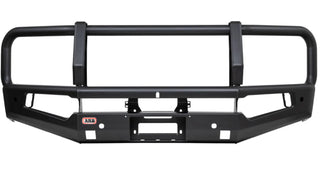

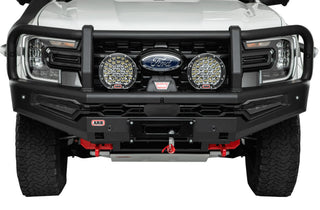

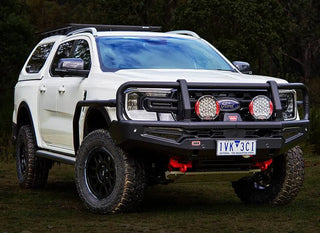

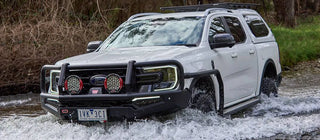

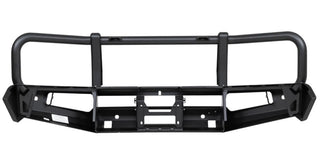

ARB bumper SUMMIT MK11 in steel R2023+ Ford Ranger & Raptor Winch Compatible

• Datasheet - Instruction Manual-Summit-MK11.PDF (Click Here)
• Winch Assembly Instructions on Bumper SUMMIT.PDF (Click Here)

Discover our SUMMIT MK11 bumper, specially designed for the Ford Ranger 2023+ and the Raptor 2023+. Compatible with versions XL, XLS, XLT, Sport, Platinum, and Wildtrak, this durable steel bumper is the epitome of protection and functionality. Designed to perfectly fit your vehicle, this model boasts a stylish and unique design.

Main Features

• Vehicle-specific design : a perfect fit for the Ford Ranger and Raptor, offering aesthetic and functional harmony.
• Durable steel construction : provides maximum protection against impacts.

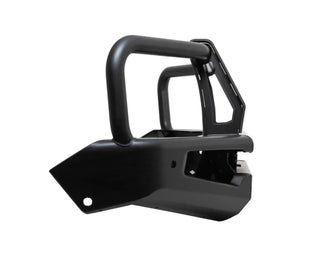

• Rising, tapered multi-ply wing design for optimal strength and improved approach angle.
• 30mm radius on wings and center section for increased strength.
• 60.3mm outer frame and center tube for exceptional strength.
• Airbag compatible mounting system, fixed to the chassis by high-strength bolts.
• Split skirt design for maximum strength and optimal airflow.
• Extended protective panels in the center and on each side.

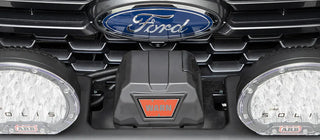

• Die-formed top plate and aluminum winch cover (matte black powder coated).
• Two lifting points for ARB or Hi-Lift jack located in the lower skirt.
• Two antenna mounts located on the outer frames.

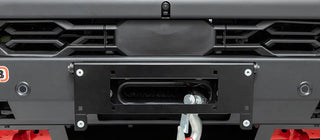

• Compatible with Winches low model electrics such as Warn, Magnum, Bushranger, Smittybilt up to 4536 kg (10,000 lb).
• Designed to integrate ARB Intensity and Solis LEDs, as well as a range of lights Bushranger and IPF.

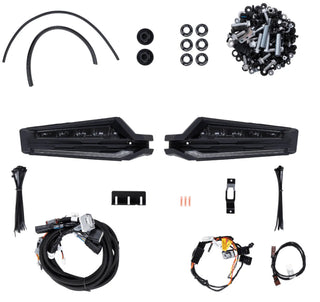

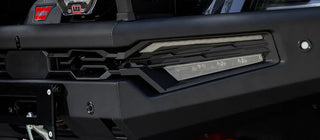

• Includes a LED fog light, LED daytime running lights, and LED indicators with position lights.

Technical Details

• Installation time (min) : 300
• Packaging dimensions : 205 cm (length) x 75 cm (width) x 95 cm (height)
• Material : Steel
• Thickness : 2.6 mm
• Color : Black
• Finishes : primed, powder coated, smooth
• Product Features : Bumper cut design, ADR and airbag safety compliant, fog light inserts, spotlight mounting tabs/brackets, CB antenna mount
• Quantity : x 2
• Type of light : Indicator with position lights and DRL – LED
• Lens type : Clear lens
• Lamp type : LED

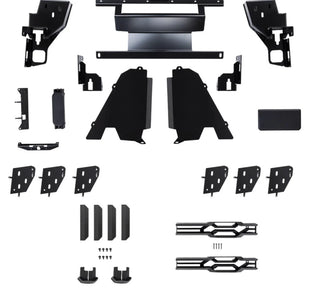

• Specifications : 2 jack points, sub-panels included
• Product Feature : Winch mounting kit available
• Winch compatibility : YES
• Guarantee : 3 years

This Summit MK11 bumper not only adds approximately 174mm to the overall length of your vehicle, but also incorporates advanced technology for additional corrosion resistance and a matte black powder-coated finish, with the option of color customization to suit your vehicle.

Add a touch of ruggedness and sophistication to your Ford Ranger or Raptor with our SUMMIT MK11 bumper. Designed for performance and aesthetics, it's the perfect choice for those who demand the best in protection and style.
